项   目 (Item) 数   据 (Data)
认证(APPROVAL)  认证查询链接  认证查询链接
测试标准(Test standard) IEC/ EN60998-1:2004 / UL1059
产品间距(Pitch)                                      [mm] 7.62

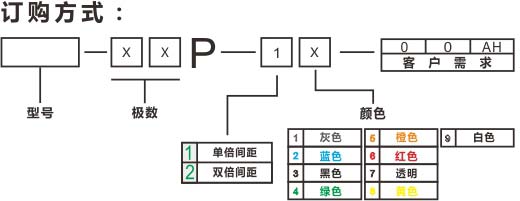

极数(Poles) 01-XXP
EN60998测试数据(EN60998  Test data) VDE certificate NO. 40030702
额定电压(Rated voltage)                              [V] 450
额定电流(Rated current)                              [A] 15
额定连接容量(Rated connection capacity)(solid/stranded) [mm2] 0.2-1.5
过压类别/污染等级/绝缘材料组别

(Surge voltage category/pollution degree/material group)

III/2/I
工频耐压(Withstanding Voltage)                     [KV/min] 2.5
额定扭矩(Rated torque)                               [N.m] /
UL1059测试数据(UL1059Test data) UL File Number E228872
应用组别(Use group) B C D
额定电压(Rated voltage)                              [V] 300 300 300
额定电流(Rated current)                              [A] 10 10 10
额定连接容量(Rated connection capacity) (solid/stranded) [AWG] 22-16
额定扭矩(Rated torque)                            [Lb. in] /
通用数据(General data) /
螺丝(Screw) /
阻燃等级(Inflammability class)UL94 V0
环境温度(Ambient temperature)                        [℃] -40~+105
相对湿度(Relative humidity) 5%-95%
抽样检验标准(Inspection standard) MIL-STD-105E II
允收水准(AQL) 0.65
保质期(Warranty) 12 months
材质和电镀(Material and plating) /
绝缘材质(Housing) PA66
弹片(Spring) Stainless不锈钢
焊脚(Pin header) Copper alloy,Sn plated铜合金,镀锡
接线方法(Wire connecting)
推荐剥线长度11mm; Recommended stripping length 11mm;
1.)单股硬导线,剥好对应长度的导线后,下压按钮同时将单线接入;

For solid wire,  stripping wire to the appointed length ,press button and insert the wire.

2.)多股柔性导线,剥好对应长度的导线后,可以直接连接或者配套使用对应标准规格的冷压端

头,下压按钮同时将线接入;

For stranded wire: stripping wire to the appointed length, mating with corresponding type of ferrule, then tightening with rated torque.
