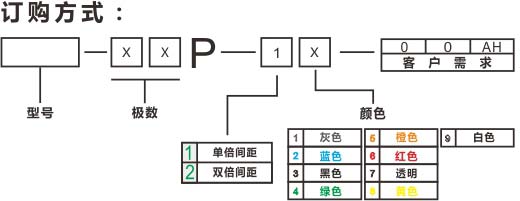

项   目 (Item) 数   据 (Data)
认证(APPROVAL) /
测试标准(Test standard) IEC60947-7-4:2012/UL1059
产品间距(Pitch)                                      [mm] 3.81
极数(Poles) 04-24P
IEC60947-7-4测试数据( IEC60947-7-4 Test data) /
过压类别(Overvlltage Category) III
额定脉冲电压(Rate lmpulse Valtage)                [KV] 2.5
额定电压(Rated voltage)                              [V] 160
额定电流(Rated current)                              [A] 12
额定连接容量(Rated connection capacity)(solid/stranded) [mm2] 0.2-1.5
额定扭矩(Rated torque)                               [N.m] 0.2
UL1059测试数据(UL1059Test data) UL1059
过压组别(Use group) B C D
额定电压(Rated voltage)                              [V] 300 / /
额定电流(Rated current)                              [A] 12 / /
额定连接容量(Rated connection capacity) (solid/stranded) [AWG] 30-14
额定扭矩(Rated torque)                            [Lb. in] 1.77
通用数据(General data) /
螺丝(Screw) M2
阻燃等级(Inflammability class)UL94 V0
环境温度(Ambient temperature)                        [℃] -40~+105
相对湿度(Relative humidity) 5%-95%
抽样检验标准(Inspection standard) MIL-STD-105E II
允收水准(AQL) 0.65
保质期(Warranty) 12 months
材质和电镀(Material and plating) /
绝缘材质(Housing) PA66
螺丝(Screw) Steel,Zn plated钢,镀锌
触点材料(Contact) Copper alloy,Sn plated铜合金,镀锡
方盒(Cage) Copper alloy,Ni plated铜合金,镀镍
接线方法 (Wire connecting)
推荐剥线长度5-6mm; Recommended stripping length 5-6mm;
1.)单股硬导线,剥好对应长度的导线后,用额定的扭力拧紧;

For solid wire, stripping wire to the appointed length, then tightening with rated torque.

2.)多股柔性导线,剥好对应长度的导线后,可以直接连接或者配套使用对应标准规格的冷压端头,用额定的扭力拧紧;

For stranded wire: stripping wire to the appointed length, mating with corresponding type of ferrule, then tightening with rated torque.

注意事项:扭力要平稳,不能使用爆发力;( Tightening process should be steady, can’t use explosive force.)
