项     目 (Item) 数     据 (Data)
认证(APPROVAL)  认证查询链接
测试标准(Test standard) IEC60947-7-4/   UL1059
产品间距(Pitch)                                      [mm] 6.35

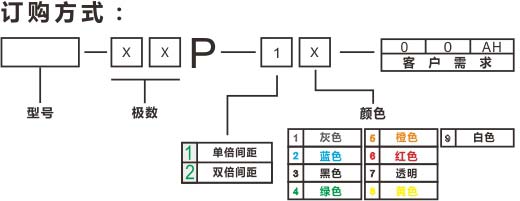

极数(Poles) 2-24P
IEC60947-7-4测试数据(IEC60947-7-4 Test   data) /
额定电压(Rated voltage)                              [V] 630
额定电流(Rated current)                              [A] 32
额定连接容量(Rated connection capacity)(solid/stranded) [mm²] 0.2~4mm2/6mm2(sol)
过压类别/污染等级/绝缘材料组别

(Surge voltage category/pollution degree/material group)

III/2/I
额定冲击电压(Rated impulse voltage)                    [KV] 6.0
额定扭矩(Rated torque)                               [N·m] 0.57(02P)/ 0.8 (≥03P)
UL1059测试数据(UL1059Test data) UL   File Number E228872
应用组别(Use group) B C D
额定电压(Rated voltage)                              [V] 300 / 300
额定电流(Rated current)                              [A] 30 / 10
额定连接容量(Rated connection capacity) (solid/stranded) [AWG] 30-10
额定扭矩(Rated torque)                            [Lb. in] 5.0(02P)/ 7.02(≥03P)
通用数据(General data) /
螺丝(Screw) M3.5
阻燃等级(Inflammability class)UL94 V-0
环境温度(Ambient temperature)                        [℃] -40~+105
相对湿度(Relative humidity) 5%-95%
抽样检验标准(Inspection standard) MIL-STD-105E   II
允收水准(AQL) 0.65
保质期(Warranty) 12   months
材质和电镀(Material and plating) /
绝缘材质(Housing) PA66
螺丝(Contact) Steel,Zn plated 钢,镀锌
触点材料(Contact) Copper alloy,Sn plated铜合金,镀锡
方块(Cage) Copper   alloy,Ni plated 铜合金,镀镍
推荐剥线长度7-8mm; Recommended stripping length 7-8mm;
1.)单股硬导线,剥好对应长度的导线后,用额定的扭力拧紧;

For solid wire, stripping wire to the   appointed length, then tightening with rated torque.

2.)多股柔性导线,剥好对应长度的导线后,可以直接连接或者配套使用对应标准规格的冷压端头,用额定的扭力拧紧;

For stranded wire: stripping wire to the   appointed length, mating with corresponding type of ferrule, then tightening   with rated torque.

注意事项:扭力要平稳,不能使用爆发力;( Tightening process should be steady, can’t   use explosive force.)
