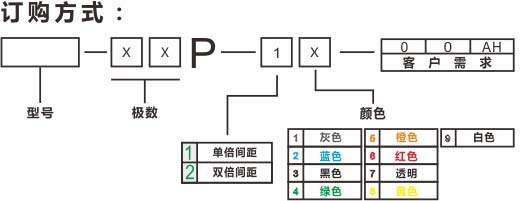

项   目 (Item) 数   据 (Data)
认证(APPROVAL)  认证查询链接
测试标准(Test standard) IEC60947-7-4/UL1059
产品间距(Pitch)                                      [mm] 3.50
极数(Poles) 02-24P
IEC60947-7-4测试数据(  IEC60947-7-4 Test data) /
额定电压(Rated voltage)                              [V] 200
额定电流(Rated current)                              [A] 13.5
额定连接容量(Rated connection capacity)(solid/stranded) [mm2] 0.2-1.5
过压类别/污染等级/绝缘材料组别

(Surge voltage category/pollution degree/material group)

III/2/I
额定冲击电压(Rated impulse voltage)                   [KV] 2.5
额定扭矩(Rated torque)                               [N.m] 0.2
UL1059测试数据(UL1059Test data) UL File Number E228872
应用组别(Use group) B C D
额定电压(Rated voltage)                              [V] 150 / /
额定电流(Rated current)                              [A] 10 / /
额定连接容量(Rated connection capacity) (solid/stranded) [AWG] 26-16
额定扭矩(Rated torque)                            [Lb. in] 1.77
通用数据(General data) /
螺丝(Screw) /
阻燃等级(Inflammability class)UL94 V-0
环境温度(Ambient temperature)                        [℃] -40~+130
相对湿度(Relative humidity) 5%-95%
抽样检验标准(Inspection standard) MIL-STD-105E II
允收水准(AQL) 0.65
保质期(Warranty) 12 months
材质和电镀(Material and plating) /
绝缘材质(Housing) PA66
螺丝(Screws) Steel,Zn plated钢,镀锌
触点材料(Contact) Copper alloy,Sn plated铜合金,镀锡
方盒(Cage) Copper alloy,Ni plated铜合金,镀镍
接线方法(Wire connecting)
推荐剥线长度5-6mm; Recommended stripping length 5-6mm;
1.)单股硬导线,剥好对应长度的导线后,下压按钮同时将单线接入;

For solid wire,  stripping wire to the appointed length ,press button and insert the wire.

2.)多股柔性导线,剥好对应长度的导线后,可以直接连接或者配套使用对应标准规格的冷压端

头,下压按钮同时将线接入;

For stranded wire: stripping wire to the appointed length, mating with corresponding type of ferrule, then tightening with rated torque.



注意事项:扭力要平稳,不能使用爆发力;(Tightening process should be steady, can’t use explosive force.)
