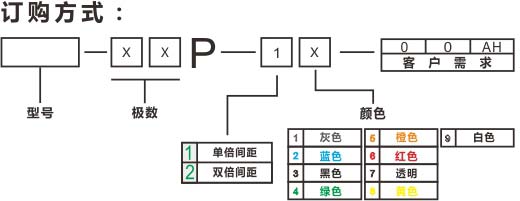

项   目 (Item) 数   据 (Data)
认证(APPROVAL)  认证查询链接
测试标准(Test standard) IEC60998-1 / UL1059
产品间距(Pitch)                                      [mm] 5.0
极数(Poles) 02-20P
IEC60998-1测试数据(IEC60998-1  Test data) /
额定电压(Rated voltage)                              [V] 250
额定电流(Rated current)                              [A] 12
额定连接容量(Rated connection capacity)(solid/stranded) [mm²] 2.5
过压类别/污染等级/绝缘材料组别

(Surge voltage category/pollution degree/material group)

III/2/I
工频耐压(Withstanding Voltage)                     [KV/min] 2.0
额定扭矩(Rated torque)                               [N.m] 0.5
UL1059测试数据(UL1059Test data) UL File Number E228872
应用组别(Use group) B C D
额定电压(Rated voltage)                              [V] 300 / /
额定电流(Rated current)                              [A] 10 / /
额定连接容量(Rated connection capacity) (solid/stranded) [AWG] 28~14
额定扭矩(Rated torque)                            [Lb. in] 4.43
通用数据(General data) /
螺丝(Screw) M3
阻燃等级(Inflammability class)UL94 V-0
环境温度(Ambient temperature)                        [℃] -40~+105
相对湿度(Relative humidity) 5%-95%
抽样检验标准(Inspection standard) MIL-STD-105E II
允收水准(AQL) 0.65
保质期(Warranty) 12 months
材质和电镀(Material and plating) /
绝缘材质(Housing) PA66
螺丝(Screws) Steel,Zn plated钢,镀锡
触点材料(Contact) Copper alloy,Sn Plated铜合金,镀锡
弹片(Wire protector) Stainless steel不锈钢
接线方法 (Wire connecting)
推荐剥线长度5-6mm; Recommended stripping length 5-6mm;
1.)单股硬导线,剥好对应长度的导线后,用额定的扭力拧紧;

For solid wire, stripping wire to the appointed length, then tightening with rated torque.

2.)多股柔性导线,剥好对应长度的导线后,可以直接连接或者配套使用对应标准规格的冷压端头,用额定的扭力拧紧;

For stranded wire: stripping wire to the appointed length, mating with corresponding type of ferrule, then tightening with rated torque.



注意事项:扭力要平稳,不能使用爆发力;( Tightening process should be steady, can’t use explosive force.)
